Kington Products

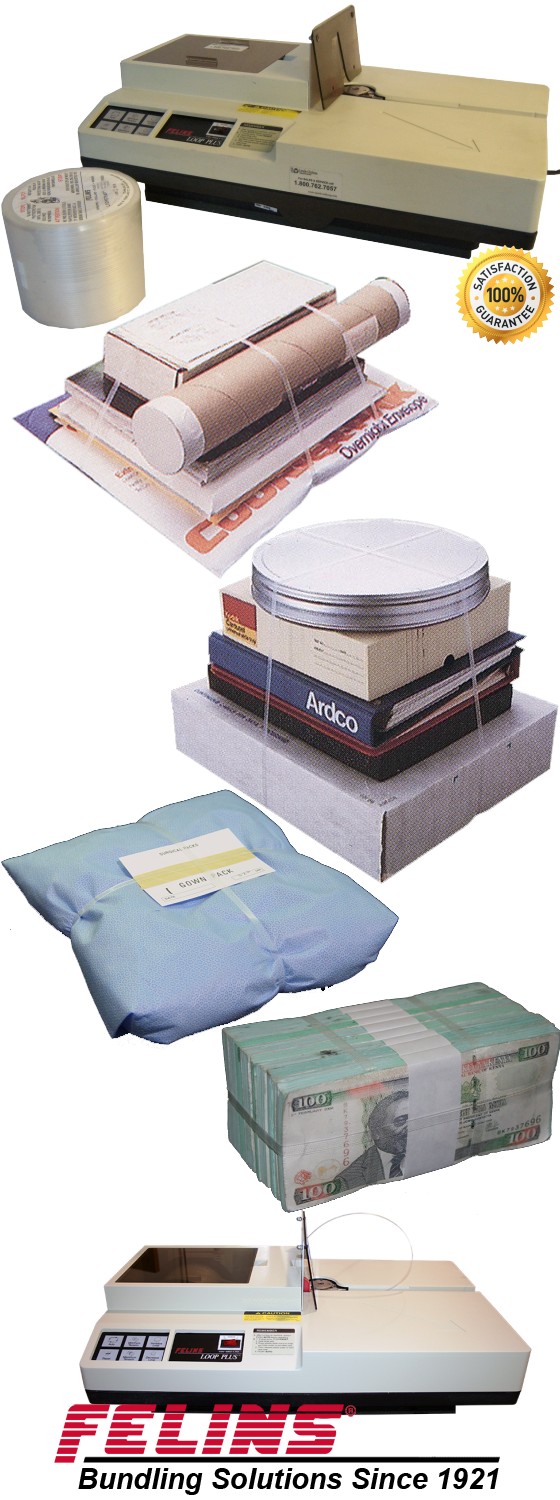

LOOP PLUS Bundling Machine. Fast. Clean. Economical. Bundling was never so easy! The simple way to bundle parcels, brochures, mail, printouts, currency - you name it!

1- The LOOP PLUS can be used for a wide variety of commercial and industrial applications. Strapping can also help reduce postage and U.P.S. charges by unitizing parcels for shipping.
2- The LOOP PLUS is perfect for bundling incoming and outgoing mail.
3- Banks and other financial institutions find strapping ideal for bundling cash, checks, coin boxes, statements, lock box remittances and more.
4- When preparing 2nd - 4th class mail for shipment, the LOOP PLUS is a more versatile, secure alternative to string, tape or rubber bands.
5- Commercial or in-house printing facilities can use the LOOP PLUS to bundle copied or printed materials.

Applications: The table top banding machine is used thousand in a great variety of plants. Major customer is Cash-in-transit companies, Financial institutions, Graphics industry, Logistics, pharmaceutical packaging, food and cosmetic industries, gift and stationery field, after printing industry....etc. We are customers’ good partner to give solution reduce their daily burden and enhance the efficiency of strapping and banding request.

This 45 lb. (21 Kg) tabletop bundling machine is portable enough to go nearly anywhere. And wherever it is, it takes the headaches out of bundling parcels, mail, supplies, printer printouts, printed or copies materials, currency. Just plug the Loop Plus into any standard outlet and you are ready to use economical plastic strapping to secure virtually any size bundle. No more messy tape, tangled string, expensive, inflexible shrink film equipment, or broken rubber bands. All you do is choose the length of strapping you need and insert your package inside a pre-formed loop. Then, in just seconds, the Loop Plus automatically tensions the strapping around the bundle, seals it with a strong joint, and cuts it cleanly to eliminate strap waste. When your parcel of bundle reaches its destination, it's easy to remove the strapping. The Loop Plus secures strap ends with a patented Tension-Weld joint, a heatless seal formed by friction alone. Just turn over the joint and "Unzip" its underside tab. No need for knives or cutting tools.

Technical Specification:

H.S. Code	8422.4000
Sealing Technology	Friction Alone (Heatless Sealed)
Available Working Zone	355 mm x 406 mm (14" x 16")
Performance	Loop Plus Maximum cycle speed: 20 straps/min.
Package Size	Minimum 70 mm (W) x 6 (H) mm; Maximum 1.5M circumference of strap fed automatically
Dimension	699 (D) x 425 (W) x 210 (H) mm
New Weight	LOOP PLUS: 21 Kg, LOOP PLUS 1000: 19 Kg
Power Supply	AC 115V, Single phase, 60Hz, 6.25 amp; AC 220V or 240V, Single phase, 50Hz, 3 amp
Miscellaneous	Loop Plus Included sound deadening insulation for quieter operation and a cooling fan for prolonged life of internal parts
Suitable Strapping Tape	LPS6-750 Strapping tape (Made in Taiwan)

ECONOMICAL, VERSATILE. LOOP PLUS secures your bundles with LPS6-750 Strapping tape. A low cost 6mm polypropylene material. And it provides superior bundle strength without adding material costs. LPS6-750 strapping band is not only four times stronger than common 30 lb. (14 Kg) bundling string, it also eliminates the need to use three or four ties to secure a bundle. Strapping can be used to bundle almost anything. It's also great for combining several parcels into a single, manageable unit that will stay together longer.

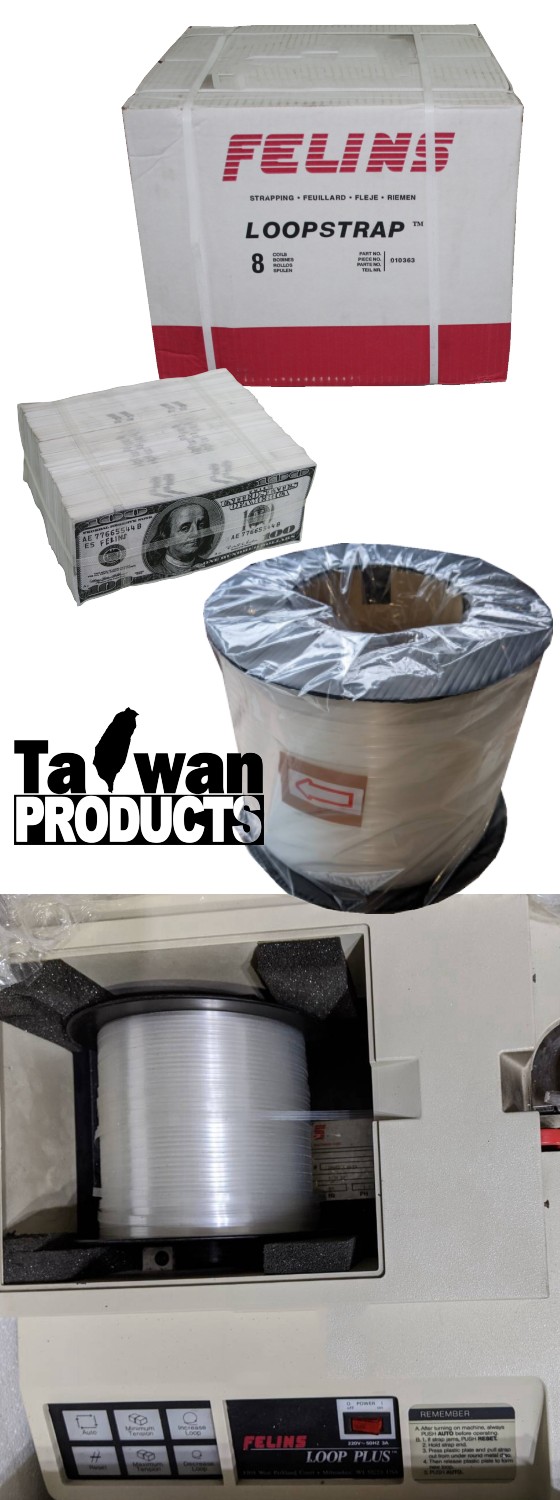

ABOUT STRAPPING TAPE. LPS6-750 Polypropylene strapping band is manufactured from a special blend of plastic, right now made in Taiwan. One and only source in the world. It had outstanding split resistance, strength and elongation recovery properties that keep it tight during all sorts of handling. And LPS6-750 strapping band is flat, to reduce the chance of package indentation or damage. It takes only a few seconds to refill the LPS6-750. Just inset a new strapping bobbin and you are ready to bundle.

H.S. Code	3926.9090
Tape Color	Transparent
Shrink Range	4% below 125 degree.
Tension	25 kgf higher
Strap Width	6 mm (5.9 ± 0.3)
Coil Length	750 M (750 + 20)
Coil Weight	1.6 Kg (1.6 ± 0.1)
Core Size	Paper 102 (D) x 145 (L) mm ; Core Weight: 0.2 kg
Carton Weight	12.8 Kg (8 Coils/Carton)
Pallet Quantity	360 Coils/45 Cartons/Pallets (MOQ: 2 Pallets)
Pallet Size	115 x 115 x 180 cm; 10PLT in 20' FCL; 20PLT in 40' FCL
Certificate of Origin	Made in Taiwan
