DUAL CIS
SENSORS CURRENCIES DISCRIMINATING COUNTER

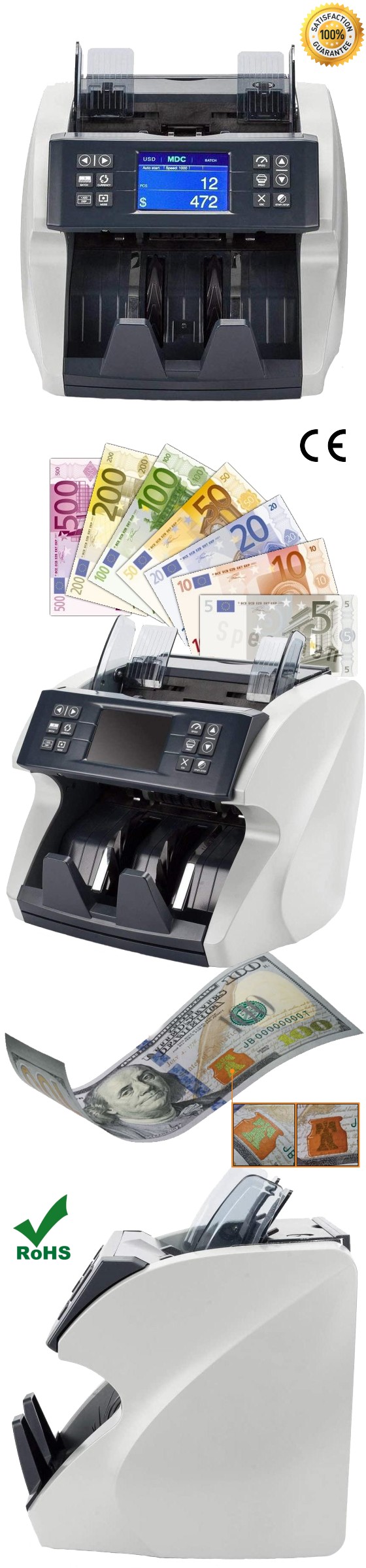

The Multi
Currency Detection Counter KT-1800 is a counterfeit detection machine especially designs
for
Recognize currency and denomination automatically.
CE Approved. European Central Bank Certified. High Accuracy and complex
inspection: quantity and position of magnetic ink, Infra-red ink, Spectrum ink,
Secure thread, Image printing process etc. High Performance KT-1800 Currency
Counter got Fake note detection and counter with UV/MG/MT/IR/CIS paper
characteristics & Serial Number Reading function. We Support USB interface to download software.
(optional)
Applications: Multi-currencies detection
Counter are adapted for enhance the efficiency of cash
verifying and adding total sum amount. Major customer is Chains stores,
Supermarket, Money Changer, Gaming Center, Casinos Retail Cashiering, Vending
industry...etc. For stationary and mobile use. We are customers’ good partner to
give solution reduce their daily burden and enhance the efficiency of cash
handling.
Applicable currencies Including: USD,
EUR, GBP, RUB, RMB, JPY, BRL, MYR, IDR and etc. We
can add more according your request!
Technical Specification:
|
Feed System |
Roller Friction System |
|
Applicable Banknote |
USD, EUR, GBP, RMB, JPY, BRL, MYR, IDR, etc. |
|
Counting Speed |
Variable from 800, 1000, 1200, 1500 notes per minute |
|
Applicable Note Size |
Length: 110-185; Width: 60-90 ; Thickness:
0.08~0.12mm |
|
Detection Method |
UV, MG, MT, IR,
Dual
CIS sensors
(Optional) |
|
Display |
Clear and informative LCD Display; Counting Display 7
Digits |
|
Hopper Capacity |
400 notes, Stacker capacity: 200 notes |
|
Note Detection |
Width, Double, Half, Chain Note Detection |
|
Batch / Add Count |
Preset at 100 plus variable at 1-9999 |
|
Power Supply |
AC100~240V 50/60Hz; Power Consumption: 50W, 1.8A |
|
Dimension |
280 (L) x 260 (W) x 270 (H) mm |
|
Weight |
N.W.: 6.5 Kg ; G.W.: 7.5 kg |
|
Optional Device |
Remote Display, Mini Thermal Printer |
|
Interface |
RS-232 Interface, 2 USB Port |

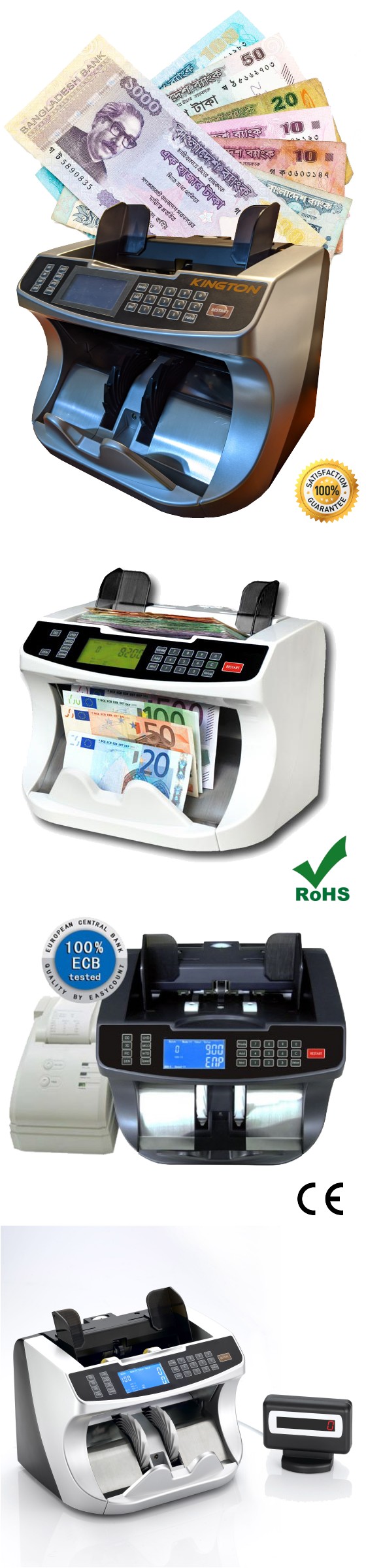

KT-900 a unique function for determining the value of counted notes. After the
notes have been counted, the total amount and subtotals for each note value are
displayed. And their authenticity is checked. It doesn't get any easier than
this.
Counterfeit Detecting: UV, MG, MT, IR, 3D, Paper Character
Features:
Sheets counting function and Value-Counting function (mix-counting).
1) ADD function
2) Batch function
3) Half note detection
4) Chain note detection
5) Double-note detection
6) Density setting
7) UV counterfeit detection (optional)
8) MG counterfeit detection (optional)
9) Metal thread detection (optional)
10) Inferred character detection (optional)
11) 3D detection (optional): Length, Highness, and Thickness
Technical Specification:
|
Feed System |
Roller Friction Counter |
|
Applicable Banknote |
USD, EUR, GBP, ETB, BDT and etc. |
|
Counting Speed |
Variable from 600, 1000, 1600 notes per minute |
|
Applicable Note Size |
Length: 90-195; Width: 50-110 ; Thickness:
0.07~0.15mm |
|
Detection Method |
UV, MG, MT, IR, CIS sensor
(Optional) |
|
Display |
Clear and informative LCD Display; Counting Display 7
Digits |
|
Hopper Capacity |
400 notes, Stacker capacity: 200 notes |
|
Note Detection |
Width, Double, Half, Chain Note Detection |
|
Batch / Add Count |
Preset at 100 plus variable at 1-999 |
|
Power Supply |
AC100~240V 50/60Hz; Power Consumption: 50W |
|
Dimension |
340 (L) x 335 (W) x 345 (H) mm |
|
Weight |
N.W.: 5.3 Kg ; G.W.: 7.0 kg |
|
Optional Device |
Remote Display, Mini Thermal Printer |
|
Interface |
RS-232 Interface, 2 USB Port |
|
