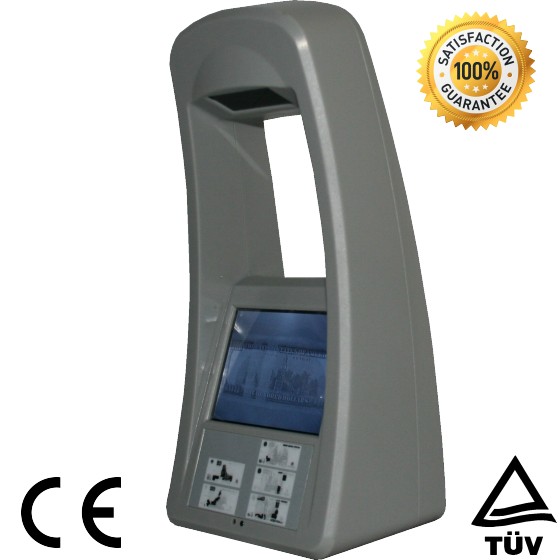

Solution to Simple & Quickly Money Detection.

KT-100DDM can detects any items with infrared mark, suitable for almost worldwide currencies. KT-100DDM screening infrared (IR) detector is designed for control of authenticity of various bank notes and securities by visualizing the IR marks: the fragments made by metameric dye. It capable of checking up to 66 different nations' currencies. Ideal device for airport foreign exchange offices, police station, etc.

Applications: IR Detector are adapted for enhance the efficiency of cash verifying and adding total sum amount. Major customer is Chains stores, Supermarket, Money Changer, Gaming Center, Casinos Retail Cashiering, Vending industry...etc. For stationary and mobile use. We are customers’ good partner to give solution reduce their daily burden and enhance the efficiency of cash handling.

Applicable currencies Including: Angola, Argentina, Australia, Belarus, Bosnia, Brazil, Bulgaria, Burma, Canada, Chile, China, Colombia, Costa Rica, Croatia, Cyprus, Czech, Dominican, Denmark, Caribbean, El Salvador, EU (Euro), Guatemala, Honduras, Hong Kong, Hungary, India, Indonesia, Iran, Israel, Japan, Kazakhstan, Kuwait, Kyrgyzstan, Macau, Malaysia, Malta, Mexico, New Zealand, Nicaragua, Norway, Pakistan, Paraguay, Peru, Philippines, Poland, Romania, Russia, Saudi Arabia, Scotland, Singapore, Serbia, Slovakia, Slovenia, South Africa, Korea Korea, Sweden, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Ukraine, United Arabia Empires, United Kingdom, United States (USD), Uruguay, Venezuela, Yemen, Zambia. We can add more according your request!

Technical Specification:

Applicable Currencies

Any currency with IR mark

Counterfeit Detection

Infrared (IR) image recognition

Detection system

Optical scaning sensor

Body Color

Dark gray

Inductive distance

10cm from IR camera

Size of Display

3.6 inch High-contrast LCD

Dimension

105(W)*90(D)*240(H)mm

Weight

0.5kg

Input voltage

AC 100~240V (universal)

Frequency Range

50~60Hz

Power Consumption

12W, 0.8A

Certification

CE, TUV

Operating Environment

-20C~+60C, 30%~90%RH

Storage Environment

-30C~+80C,10%~98%RH

Optional Device

Video output to PC monitor

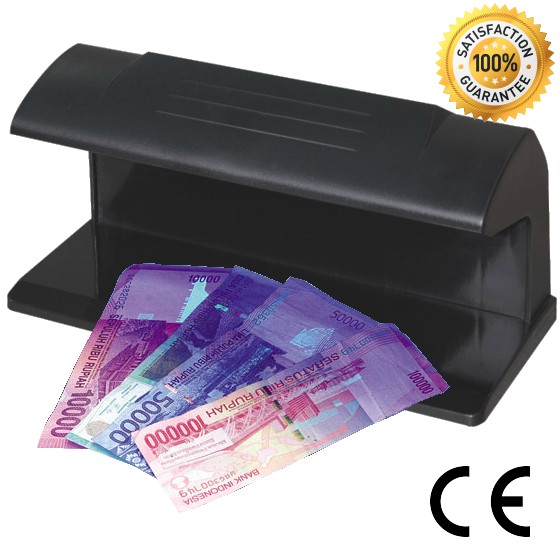

Solution to Simple & Quickly Money Detection.

KT-105 can detects any items with fluorescent or water mark, suitable for almost worldwide currencies. Applicable: Banknote, credit card, travel cheque, ID, passports, securities or travel documents,...etc. Cost effective, endurable working life, simple to using, had pass CE certificate.

Using Blacklights to identify counterfeit bills. Black lights produce Long wave Ultra Violet that can be used to identify counterfeit bills. Bank notes also incorporate fluorescent dyes, which glow under exposure to UV illumination. To enable fluorescence, dye is infused with luminescent solids that give off a specific colored glow under UV light. In a low light room both the portable blacklight and mountable blacklight fixture can be used to examine bills. All re-designed U.S. Currency must contain a security thread that glows under the KT-105 as follows:

Security Thread Under UV Light Will Glow As Follows:
100-dollar note, Fluoresces Red
50-dollar note, Fluoresces Bright Yellow
20-dollar note, Fluoresces Green
10-dollar note, Fluoresces Orange
5-dollar note, Fluoresces Blue

NOTE: Old U.S. counterfeit currency is revealed by UV light because most counterfeit bills are printed on paper containing optical bleach which fluoresces blue/white. Any old currency bill that glows under UV light should be considered suspect. A fluorescent strip will show up. The color
and position of the stripe will be determinant to detect the genuineness of this feature (excluding $1 and $2 bills).

Applications: UV Detector are adapted for enhance the efficiency of cash verifying and adding total sum amount. Major customer is Chains stores, Supermarket, Money Changer, Gaming Center, Casinos Retail Cashiering, Vending industry...etc. For stationary and mobile use. We are customers’ good partner to give solution reduce their daily burden and enhance the efficiency of cash handling.

Technical Specification:

Applicable Currencies

Any currency with UV mark

Counterfeit Detection

UV 4W1

Net Weight

0.3 Kg (1pc)

Gross weight

4.2 kgs (12pcs)

Power Supply

AC 220V 50 Hz or 110V 60 Hz

Power Consumption

4W

Ambient Conditions

Temperature 0~40 degree, Humidity 30 ~ 75%

Carton Size

392*305*220mm

Options

Spare 4W UV tube

Packing Detail

12 Pcs/Box, Size: 392*305*220mm, :
