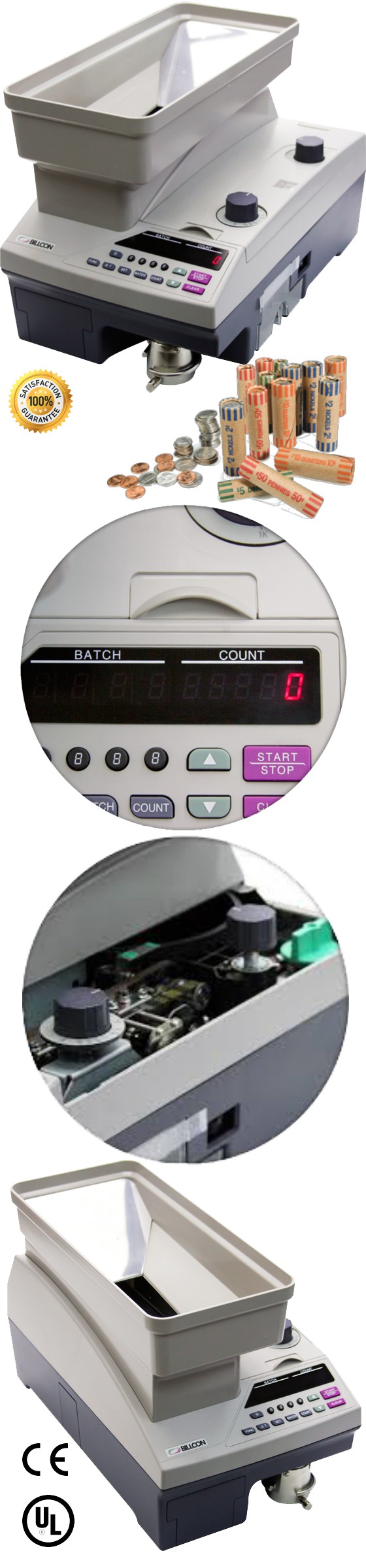

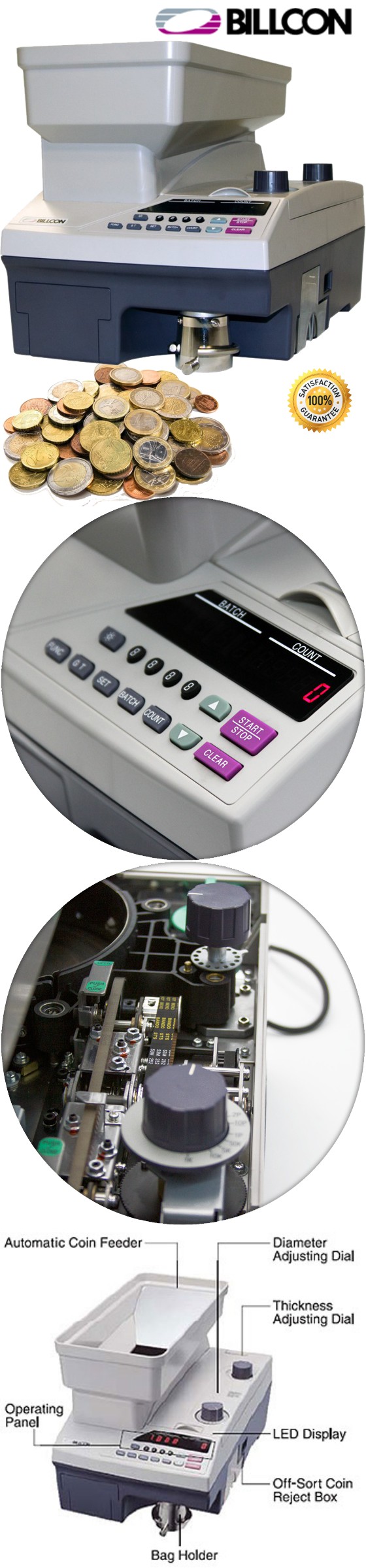

CHS-10 High
Speed Coin Counter
Counting Speed Approx. 4,000 coins per minute (Dime). We know
Counting coins is a task that is time-consuming and must be error-free. CHS-10
coin counter processes high volume of coins Hopper Capacity Approx. 10,000 coins
(Dime) at a rate of 4,000 per minute (dime) for accurate, rapid and efficient
coin counting. The smaller size coins are rejected into a reject box, while
larger size coins remain in the hopper.
For end user, CHS-10 is extremely easy to use, simplifying their work. The body
of this desktop model has a low design, so it is easy to place a large quantity
of heavy coins into the hopper. All controls are located on the front of the
machine to make operation more convenient.
Features:
- Electronic sensing technology for high speed counting contributes to
saving time and cost by releasing operator from troublesome work.
- Heavy duty mechanism provides state-of-the-art reliability.
- Clear LED display and pushbutton switches offer user-friendly operation.
- Four easily selectable preset batches, with manual alteration, for any
preset up to 9,999 increase convenience for banking, vending and all other
industries.
Technical Specification:
|
Applicable Coins |
Diameter: 15-38mm, Thickness: 0.8-3.6mm
(universal) |
|
Countting
Speed |
Approx. 4,000 coins per minute (Dime) |
|
Hopper
Capacity |
Approx. 10,000 coins (Dime) |
|
Preset Batch |
Preset Batches (2,000 1,000 500 100) or any number upto 9,999. |
|
LED Display |
Count 5-digit, Batch Preset 4-digit. |
|
Data
processing |
Calculate number & Grand
Total |
|
Dimension |
300 (W) x 500 (D) x 345 (H) mm |
|
Weight |
N.W. 20.5 kg ; G.W. 21 kg |
|
Power Supply |
AC 100V~110V or 220V~240V
50/60Hz (Universal Standard) |
|
Power Consumption |
100W |
|
Optional Accessories |
External Display, RS-232C 2-channel interface (COP-02) |
|
Warranty Certificate |
2 Years
Warranty with CE Certificate, UL Standards |
產品特色:
- 市面上最高速數幣機--速度可達4,000 枚/分.
- 硬幣可放置容量大約10,000 枚. 操作簡單..
- 大型皮帶自動運輸硬幣.方便大量硬幣點算.
- 日本製造, 品質穩定, 機器耐用, 機器壽命長.
產品規格:
|
可適用硬幣 |
直徑: 15-38mm, 厚度: 0.8-3.6mm |
|
數幣速度 |
台幣可達 3,700 枚/分; 美元10 Cent (DIME)可達4,000 枚/分 |
|
硬幣可放置容量 |
大約 10,000 枚 |
|
數幣預置數值 |
四組預設數值 (2,000 1,000 500 100) 或任何數字9,999. |
|
LED 顯示 |
計數顯示:
5位數, 預置顯示:
4位數 |
|
計數處理 |
計算硬幣個數和總計功能 |
|
機器尺寸 |
300 (W) x 500 (D) x 345 (H) mm |
|
機器重量 |
N.W. 20.5 kg ; G.W. 21 kg |
|
可適用電壓 |
AC 100V~110V or 220V~240V
50/60Hz (國際標準) |
|
機器功耗 |
100W |
|
可選配件 |
外接顯示器, RS-232C 雙通道接口 (COP-02) |
|
保固及認證 |
2
年機器保固, 機器通過CE, UL認證 |
|
