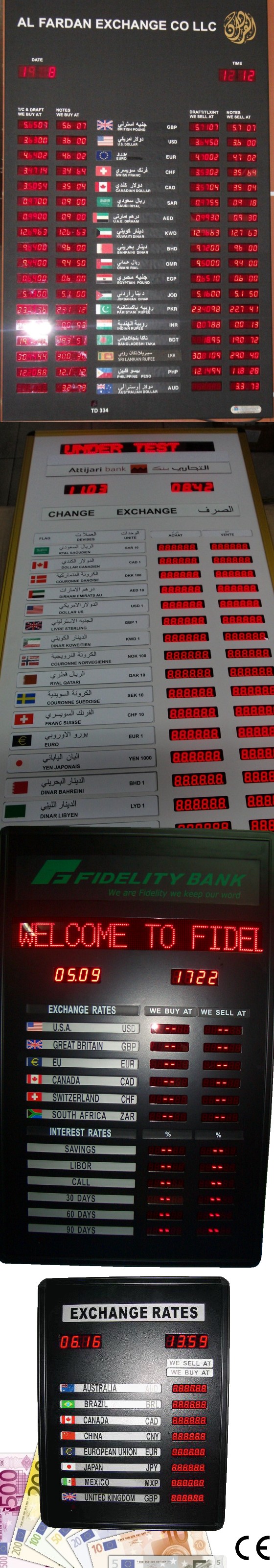

LED
digital exchange Rate Board model RB-series offer an eye catching, high
quality display, and are ideal for currency dealers, banks and hotels. Remote
control keyboard is attached, computer links with rate board directly.
Programming is by handheld infra-red remote control or via RS232 serial
communications from any PC. Or you can send the data by optional TCP/IP through
Internet. User friendly software provides quick, efficient and secure updating.
The exchange rate software is capable of networking a system, enabling the
user to programmed displays uniformly across the country by internet (TCP/IP).
An Exchange Rate access coding on the keyboard and software guarantees against
unauthorized misuse of your Exchange Rate Board. Time / Date display , 4 digits
with 1.0" seven-segment red LED
Standard Black Casing & Black plate. Movable magnetic strips to put onto the
metal slot.
Magnetic Strips with silver background & black characters. Country name &
currency code in English.
Applications: The
table top banding machine is used thousand in a great variety of plants.
Major customer is Airports, Train Stations, Money Changer, Commercial Bank,
Post office, Hotel, Jewellery shop, Auctions, Receptions, Promotions,
Leisure Centres, and many more. Whether the application is a Bank, Bureau de
Change, Travel Agents or Tax-Free Shop at an airport, you will find these
Electronic Exchange Rate Displays a valuable asset to customer relations.
Model |
Columns |
Rows |
Dimensions |
RB-0106 |
1 |
6 |
510mm(W)
x 725mm(H) x 50mm(D) |
RB-0206 |
2 |
6 |
640mm(W)
x 725mm(H) x 50mm(D) |
RB-0306 |
3 |
6 |
800mm(W)
x 725mm(H) x 50mm(D) |
RB-0112 |
1 |
12 |
500mm(W)
x 950mm(H) x 50mm(D) |
RB-0212 |
2 |
12 |
650mm(W)
x 950mm(H) x 50mm(D) |
RB-0312 |
3 |
12 |
800mm(W)
x 950mm(H) x 50mm(D) |
RB-0412 |
4 |
12 |
950mm(W)
x 950mm(H) x 50mm(D) |
RB-0218 |
2 |
18 |
650mm(W)
x 1200mm(H) x 50mm(D) |
RB-0xYY |
x |
YY |
Depend of
Columns and Rows |
Technical Specification:
LED
Sort |
Indoor
type (seven segment) : 0.56", 0.8", Super brightness |
Color
Sort |
LED:
Red, Green, Blue, Panel: White & Black |
Function |
Digits
display, Message display (LI/ QP), Self-Test mode |
Moving
Display |
LI:
Resolution: 48 x 7 dots, QP: Resolution: 128 x 16 dots |
Communication |
RS232/
RS422/ Modem/ TCP/IP/ Infrared Remote Control |
Power Supply |
AC
110V/60Hz or 230V/50Hz (universal model) |
Dimension & Weight |
Depending on Model |
Working
Environment |
Windows
application software |
Usage
Environment |
Temperature 10°C ~ 30°C (Operating), Humidity 15 ~ 90% |
Optional |
TCP/IP
Function, QP Resolution, Customized Panel Size |
