DESKTOP STRAPPING MACHINE ESPECIALLY FOR
BANKNOTES STRAPPING
Digital
display for user tensioning adjustment easily.
DC Motor driven faster than M2 model 2.8 ¡÷ 2.0 Sec.
Run on ECO strap competitive in cost & environment.
Semi-Automatic strapping machine suit to BANK, POST OFFICE,
MAILS ROOM, GIFT & BOOK STORE, DEPARTMENT STORE. and other
financial institutions find strapping ideal for bundling
cash, checks, coin boxes etc.

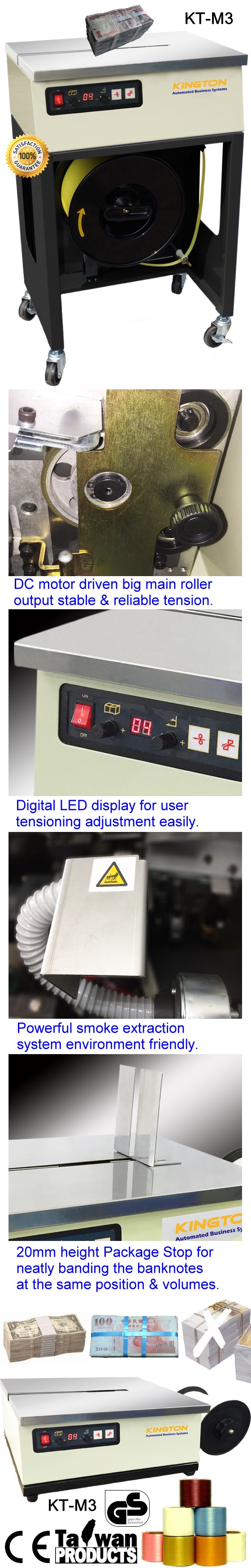

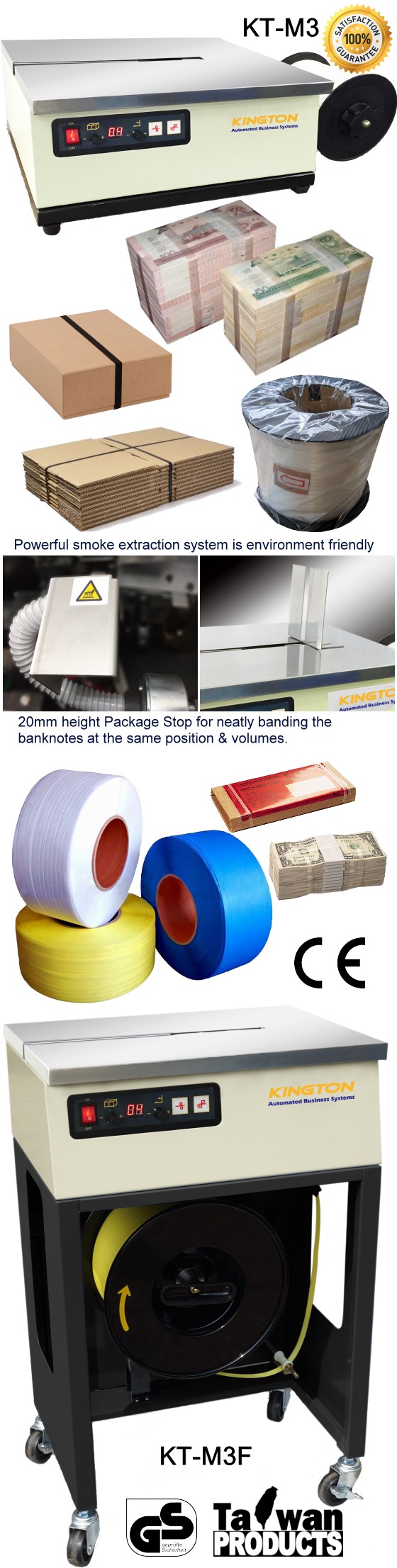

Just plug the KT-M3 into any standard outlet, insert your
package inside the pre-formed loop and within seconds the
bundle is secured with economical plastic strapping. A small
machine for Banknote bundling or other office use. Very easy
operation and space saving. Feed length and tension
adjustable. No waste in strapping.
CE safety standard design
Elegant and compact design
Sophisticated P.C. board control and accurate mechanical
system
Power saving control via automatic motor shut-off
Noiseless operation
Technical Specification:
|
Model Number |
KT-M3 (Floorstand) |
KT-M3 (Desktop) |
|
Reel Inside
Diameter |
200 mm |
60 mm |
|
Dimensions
(mm) |
L520 x W386 x H825 |
L785 x W386 x H243 |
|
Weight |
50 kgs |
33 kgs |
|
Reel Inside
Diameter |
200 mm |
60 mm |
|
Mini.
Package Size |
W45 x H25 mm |
|
Sealing
Technology |
Heat melting
sealed |
|
Performance |
Cycle Time
2.0 sec/strap |
|
Tension
Range |
Wide
tensioning range from 4 to 25 kgs. |
|
Display |
2 digit LED
indicator for Tension Adjustment |
|
Strap
Specification |
5, 6, 9, 12,
15.5 mm width; 0.4~0.7mm Thickness |
|
Power Supply |
AC
110/230V, 50/60Hz, 1PH; Consumption: 0.45KW |
|
Power Supply |
AC 110/230V, 50/60Hz, 1PH (universal
model) |
|
Smart
Cutting System |
Free
adjustment for various thickness strap |
|
Optional Device |
Activated
Charcoal Filter |

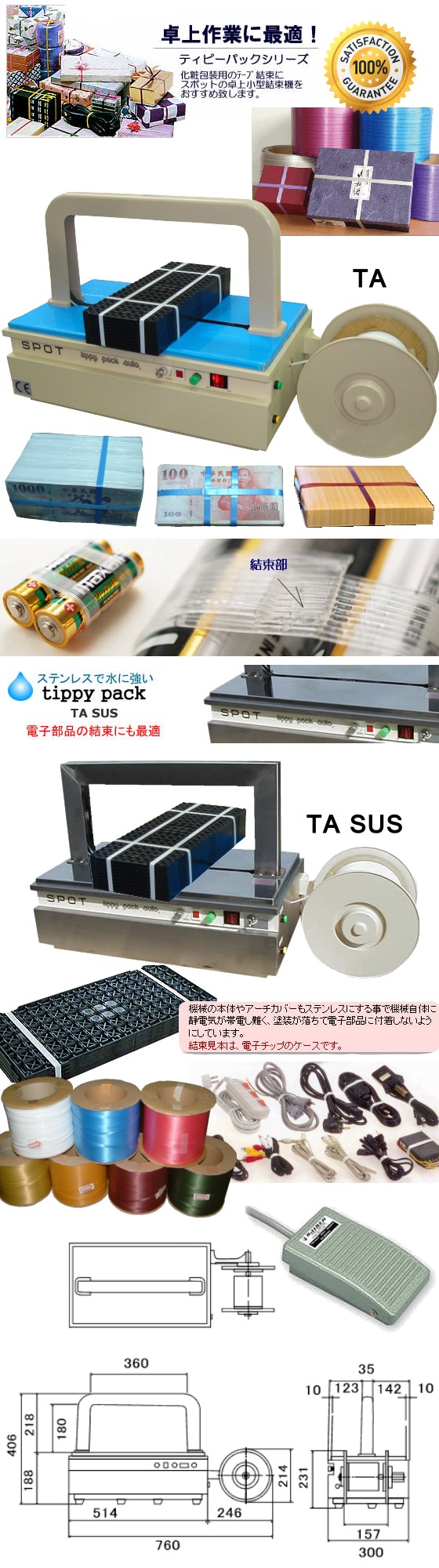

TA series is Ideal for bundling Omiyage,
Paper box, Flower, IC trays, etc. Various colors PP band can
upgrade the value of merchandise. Fast. Clean. No Noise.
Exquisite Packaging was never so easy! Soft PP tape is
develop of 21 century, new fashion, light weight and
exquisite packing. Predominant, full color and fire new
packing tape, could upgrade the value of merchandise. Great
performance & outstanding quality was the best choice for
banking & IC industry. Strap Band on Reels that suit to TA,
TA-SUS series Automatic strapping machine. TA-SUS Stainless
Steel Body and Arch is designed to handle highly precision
electronic components packing. Staticelectricity will hard
to charge the machine itself in our stainless steel body and
arch to reduce Electro-magnetic Interference. Each machine
enclosed with one foot switch.
Packing information:
12 rolls in one carton, and 24 cartons in one pallet.
(288rolls) ; Our mini order is 2PLT.
Customer request color or logo printing is available, mini
order is 576rolls (48CTN).
One carton size is 57x39x33cm, pallet size is 117x114x144cm.
N.W. (17.5kgs*24) =420kg; G.W.
(18kgs*24)+pallet(10kgs)=442kg
¡@
|
Strap Band on Reels Adopt to TA, TA-SUS
series |
|
It. No. |
Color |
Thickness |
Antistatic |
Width |
Length |
Breaking Strength |
|
8500 |
White |
0.55mm |
None |
8mm |
500M |
53kg (Normal PP) |
|
8650W |
White |
0.4mm |
None |
8mm |
650M |
32kg (Soft PP) |
|
8750 |
Transparent |
0.3mm |
None |
8mm |
750M |
20kg (Soft PP) |
|
8750W |
White |
0.3mm |
None |
8mm |
750M |
22kg (Soft PP) |
|
8750B |
Blue |
0.3mm |
None |
8mm |
750M |
22kg (Soft PP) |
|
8750P |
Pink |
0.3mm |
None |
8mm |
750M |
22kg (Soft PP) |
|
8750Y |
Yellow |
0.3mm |
None |
8mm |
750M |
22kg (Soft PP) |
|
8750T |
Tawny |
0.3mm |
None |
8mm |
750M |
22kg (Soft PP) |
|
8750R |
Rouge |
0.3mm |
None |
8mm |
750M |
22kg (Soft PP) |
|
8750O |
Olive |
0.3mm |
None |
8mm |
750M |
22kg (Soft PP) |
|
AS-W |
White |
0.3mm |
YES |
8mm |
750M |
22kg (Soft PP) |
|
AS-B |
Black |
0.3mm |
YES |
8mm |
750M |
22kg (Soft PP) |
Applications: Strap
Band on Reels are adapted in above machines to strap
tightens, heat seals and cuts the strap automatically for
bundling small objective. For example:
Office stuff:
books, stacks of papers, labels, envelopes, magazines,
presswork, paper banknote, coupon, 10 bundle currency and
even small sized bundles of 0.8 cm.
Gift stuff:
souvenir, gift box, cosmetic, articles of luxury, a bouquet
of flowers.
Food stuff:
candy box, seafood, authentic cuisine box, cake box, lunch
box, other food.
IT stuff:
stacks of IC tray, telecom cable, electric wire, power
cord,...etc. Major customer is Commercial banks, Post
Office, IT industry in IC trays packing or Chip Probing. Our
Strap Band on Reels are subject to strict quality tests
during production. Especially the unique anti-static PP band
its composition: Polypropylene 22%, Polyethylene 33%,
Anti-static Oil 28%, Black master batch 17%. The material is
characterized by its reliable anti-static performance, good
sealing features, identification no hazards. Its specially
adapted for the strapping machines we mention and comply
with MSDS approval.
¡@
|
Sealing Technology |
Heating &
pressing sticking |
|
Warm-up time |
Approx 15~30 second after switch on power |
|
Operating method |
Automatic, Manual & Foot Switch |
|
Strap Width |
6mm or 9mm; Thickness: 0.4~0.7mm |
|
Performance |
Up to 20
bandings per minute |
|
Arch Size for different bundling
performance |
Small Arch: 180 (W) x 180 (H) mm |
|
Standard Arch: 360 (W) x 180 (H)
mm |
|
Stainless Steel Arch: 360 (W) x
320 (H) mm |
|
Floorstand Model Arch: 440 (W) x
200 (H) mm |
|
Tension Strength |
7 kg
~10 kg (Adjustable) |
|
Power Supply |
Single Phase
AC110V/60Hz or 220V/50Hz |
|
Power Consumption |
135 W (25W Motor x 2) |
|
Dimension |
300 (D) x 760 (W) x 406 (H) mm |
|
Weight |
N.W. 20 kgs
; G.W. 23 kgs |
|
Available Tape |
Elastic Soft PP Strap |
¡@
