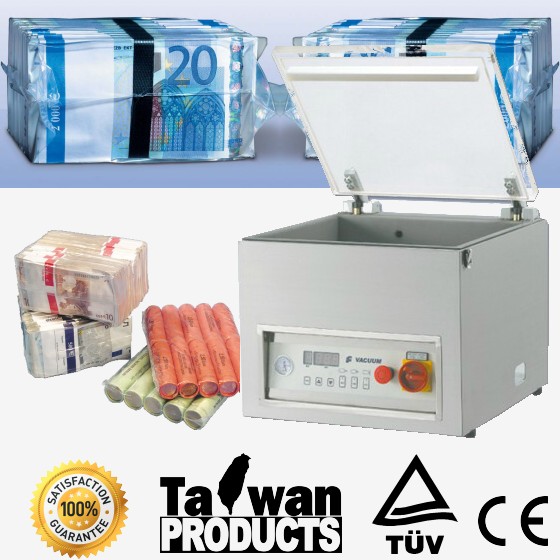

Kington Co. ltd. Semi Automatic Banknote Vacuum Wrapper KT-610 series. It incorporates the largest pump size which allows packaging of larger bundles of banknotes. Vacuum and seal settings are stored and recalled by programmable buttons, so they can be reproduced exactly and quickly. The security of vacuum packaging has many advantages over banding and strapping. The pouches are clear so visual inspection is easy and each pouch can be embossed with source code information. Our currency vacuum wrapping machine meets demanding safety and quality standards with the TUV mark and the CE mark which is issued by SGS Taiwan EMC service as evidence of safety testing.

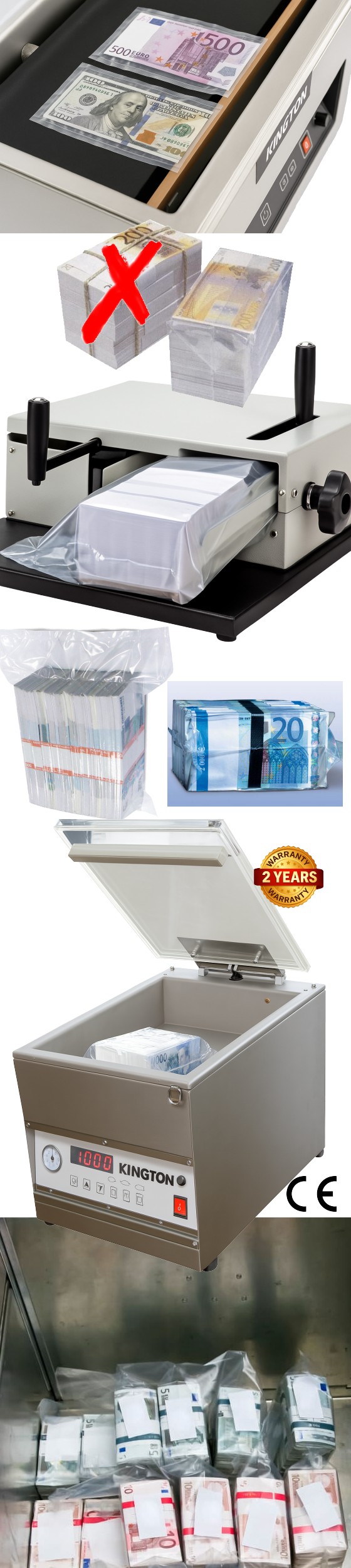

All over the world, before processing the banknotes are bundled together in wads of usually one hundred notes. In contrast to the new notes, the used ones are usually more difficult to handle due to the fact that they take up more space. With help of Kington KT-610, it is possible to vacuum package up to 2 packages in less than 20 seconds. After the lid of the chamber is closed, the vacuum process is started and completed automatically with perfect results every time. Ready-made vacuum packaged banknotes [or wrapped or loose coins, for that matter) can be then transported easily and safely, stored in vaults for up to six months without the necessity of recounting. Vacuum packaging technology enables the money to be always available to authorized users and never to elements or unauthorized access.

Applications: The table top vacuum wrapping machine is used thousand in a great variety of plants. Major customer is Cash-in-transit companies, Financial institutions, pharmaceutical packaging, food and cosmetic industries, tea, fruit, fish, meat, chemical products, rice made food, bean product and seasonings.. ...etc. We are customers’ good partner to give solution reduce their daily burden and enhance the efficiency of storing request.

INDUSTRIAL /CONSUMER PRODUCTS -Currency, Coin tubes, Metal components (ball bearing, automotive parts), Welding rods, Animal food, Medical devices, pharmaceutical, Electronic components, Compound, Special powder , Old and useful documents packing for long storage, hygroscopic chemical packing. FOOD PRODUCTS - Hard cheese , dairy, Meat, fish , marine, Frozen foods & vegetable (potato, peas, seasonings) produce, Dried fruits , nuts (cashew, walnut, peanuts, almond, dates) Tea , coffee, Grains, flour, spices, pulses (rice, sesame seeds, soybeans, Dried snacks, Ready to cook meals, Confectionary & much more.

Technical Specification:

Chamber Dimension	400 (L) x 320 (D) x 100 (H) mm
Sealing Length	Length 300 mm × Width 8mm
Vacuum Pump	Air Pump: 0.24kw ~ 6m³/hr ; Oil Pump: 0.37kw ~ 7.2m³/hr
Packaging capacity	ca.2-3/min. Number of packages: 1
Vacuum Pouches	Polyethylene (PE) L20xW30cm; Thickness: 80μ (Option)
Machine Dimension	500 (L) x 366 (W) x 380 (H) mm
Weight	N.W. 40kg ; G.W. 45kg
Power Supply	AC 110V/60Hz or 230V/50Hz (universal model)
Electrical Power	Air Pump: 0.24kw ; Oil Pump: 0.3kw
Optional Device	Manual Press Assistance Device, Variable Size of Pouch
