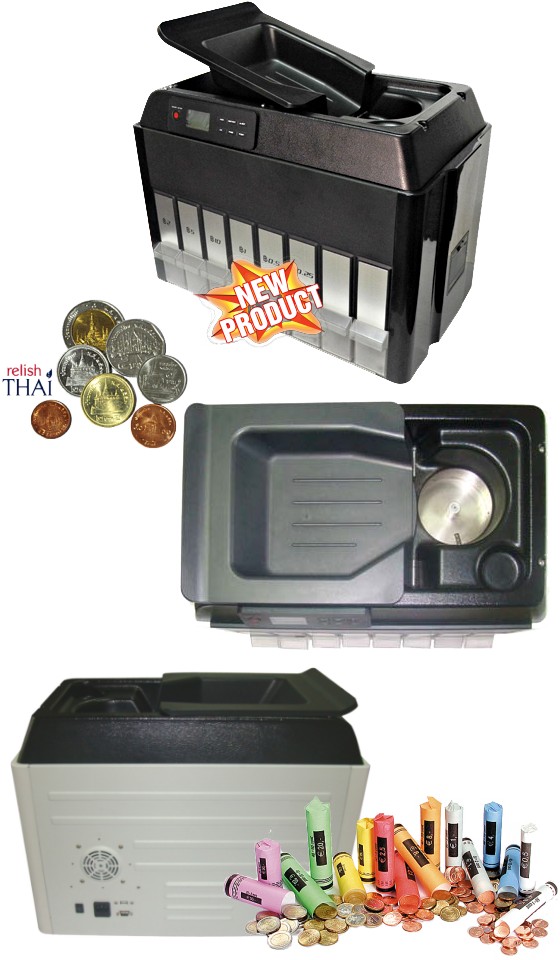

CS-800 is the middle speed reliable automatic Coin Sorter, it can count and identify the coins of different diameters and values and realize the coin authentication. Besides, it can also calculate the numbers, amount and grand numbers and total value of all the coins. Auto stop when the coin tray is empty. LCD display Report coin counting result. And print the counting result (internal & external printer).

Applications: Automatic Coin Sorter are adapted for enhance the efficiency of coin counting and sorting. Major customer is Commercial Banks, Cash-in-transit companies, Financial institutions, Cash processing center, Public Telecom company, Mass Transit System, Gaming Center, Casinos, Vending industry...etc. We are customers’ good partner to give solution reduce their daily burden and enhance the efficiency of cash handling.

Applicable Coins Including: Euro Coins, Thailand Baht, Turkish Lira. We can add more according your request!

Technical Specification:

Applicable Coins	Diameter: 14-32mm, Thickness: 0.8-3.2mm (universal)
Sorting Speed	600~800 PCS/Min(mix)
Numbers of Slot	Up to 8 different denominations coins sorting
Counting Mode	Continuous Counting, Mix Counting, Batch Counting (Option)
Hopper Capacity	8000~12000 Coins (upto coins diameter and thickness)
Receiving Slot Capacity	300 Coins (2 Euro) / 800 Coins (0.01 Euro); Max: 8000 Coins
Display	Large LCD can display all details of the counted coins
Data processing	calculate the numbers and amount of each denomination and grand numbers and amount of the counted coins
Dimension	598 (L) x 340 (W) x 434 (H) mm
Weight	N.W. 20 Kg ; G.W. 25 Kg
Power Supply	110V/60Hz or 220V/50Hz (universal model), 120W
Ambient Conditions	Temperature 5~35 degree, Humidity 80%; Noise: ≦81dBA
Optional Device	Internal Printer or External Printer, Batch Counting
Packing Detail	1 Set/CTN, Carton size: 75.3 (L) x 50 (W) x 59.4 (H) cm
