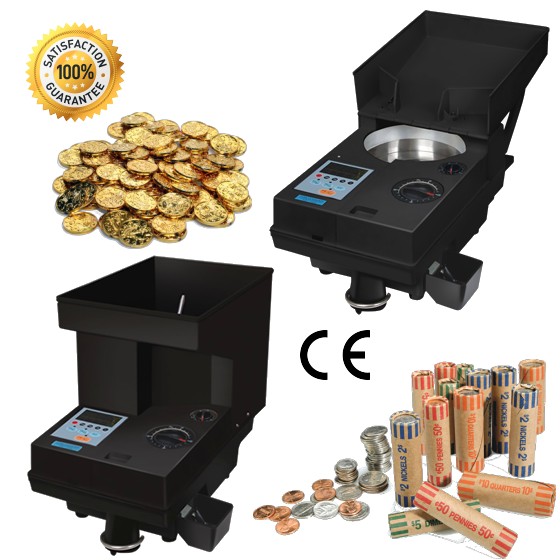

K200N Series High-Speed Coin Counter – Power, Speed, and Efficiency Redefined

The K200N coin counter delivers unmatched performance with a processing speed of up to 3,400 coins per minute, powered by a motor-driven feeding system and a high-capacity hopper that holds up to 10,000 coins. Designed for maximum uptime and user-friendly operation, the S127 combines efficiency, accessibility, and functionality in one compact powerhouse.

🔄 Efficient & Fast Operation

RapidSwitch™ system enables:

Up to 30% faster bag changes
Up to 40% time savings in tubing

Optional foot pedal speeds up tubing operations

Motor-driven feeding system ensures maximum speed even at full hopper capacity

Easy access to the coin disc via openable front flap – no need to unload coins during jam clearance

🧠 Smarter User Experience

3” full-color LCD display with wide viewing angle

Intuitive user interface with clear, code-free error messages

Direct function keys for easy access to key operations

Batch settings: 0–99,999 coins per bag

Individual denomination batch stop options

Value counting mode calculates total coin value

Printer interface for external printing of counting results

Designed for professionals who demand speed, reliability, and simplicity in coin handling.

Technical Specification:

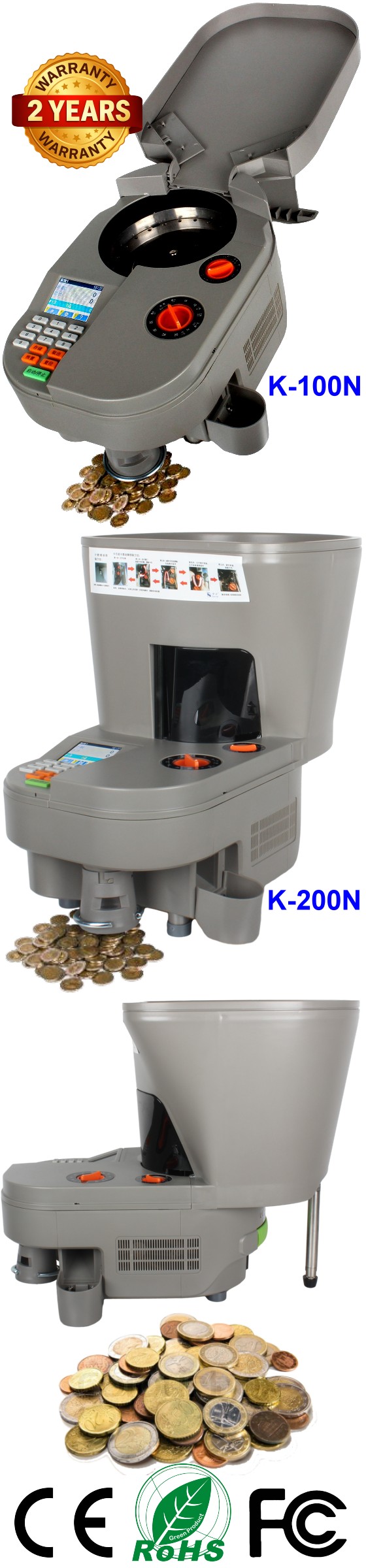

Model No	K-100N and K-200N
Application	Handles metal coins and most plastic tokens
Applicable Coin Size	Diameter: 14~34mm; Thickness: 0.8~3.8mm
Display	3“ color LCD with large visibility angle
Counting Speed	Up to 3,400 coins/tokens per minute
Hopper Capacity	Up to 10,000 coins
Count Modes	Piece Counting, Value Counting (9 Denominations)
Start/Stop	On/Off Key Quick Change Switch Foot Pedal
Bag Stop	2 levels 0-99,999 Coins, Individual stop per denomination
Memoey	Total and Bag Content
Dimension	465 (D) x 285 (W) x 385 (H) mm
Weight	N.W. 9.5 Kg ; G.W.10.5 Kg
Power Supply	110V/60Hz or 230V/50Hz (universal model)
Power Consumption	≦ 60W ; Operation: 22W ; Standby: 8W
Acoustic Noise Level	Operation < 84dB(A) ; Standby <1dB(A)
Operation Environment	Temperature: 10~35℃; Humidity: 20~80% RH
Optional Item	External Display, External Printer, Feet Switch Pedal
Interface	LAN (Ethernet), USD 2.0, RS-232 Start/stop connector
Fimeware Upgrade	Available, Through SD-Card
Certificates	CE, RoHs, FCC Compliance

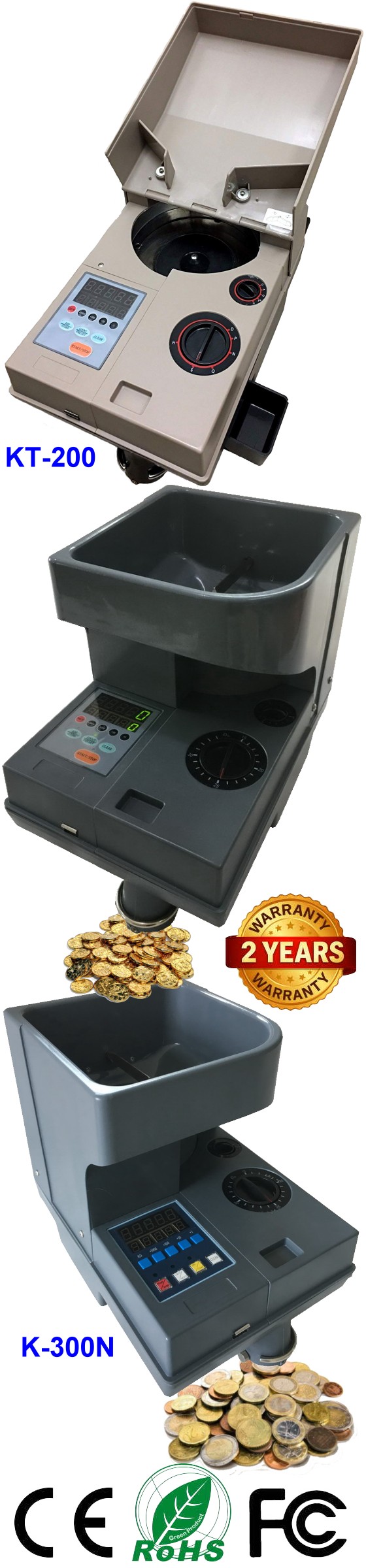

Automatic Coin Counter & Coin Packager Machine is high technical product with light, electronic and mechanism. It is universal standard suit to worldwide coin between this specification: Diameter: Max:34, Min:14mm; Thickness: Max:3.4, Min:0.8mm. K300N Carrying handle for easy portability and side bag attachment for rejected coins, both as standard. Easy to read 5 digit red LED display. The electronic sensing technology assures high accuracy. Other features are pre-selectable bags stops, memory, automatic stop and off sort function for smaller coins. Coins which are smaller by at least 0.5 mm than the present set denomination are off-sorted automatically. A memory allows the storage of the counted coins.

Applications: Automatic Coin Counter are adapted for enhance the efficiency of coin counting. Major customer is Commercial banks, Cash-in-transit companies, Financial institutions, Cash processing center, Money Changer, Public Telecom company, Mass Transit System ...etc. We are customers’ good partner to give solution reduce their daily burden and enhance the efficiency of cash handling.

Technical Specification:

Model No	K-300N
Applicable Coin Size	Diameter: 14 to 34mm; Thickness: 0.8 to 3.4mm
Display	Counting 5 digits, Add, Batch (1-9999)
Counting Speed	Up to 2,400 coins/tokens per minute
Hopper Capacity	Up to 3,000 coins
Dimension	335 (D) x 220 (W) x 310 (H) mm
Weight	N.W. 8 Kg ; G.W. 10 Kg
Power Supply	110V/60Hz or 220V/50Hz (universal model)
Power Consumption	≦ 60W ; Operation: 22W ; Standby: 8W
Acoustic Noise Level	Operation < 84dB(A) ; Standby <1dB(A)
Optional Item	External Display, Cotton Bag for Coins
Packing Detail	Carton size: 413039cm
Certificates	CE, RoHs, FCC Compliance
