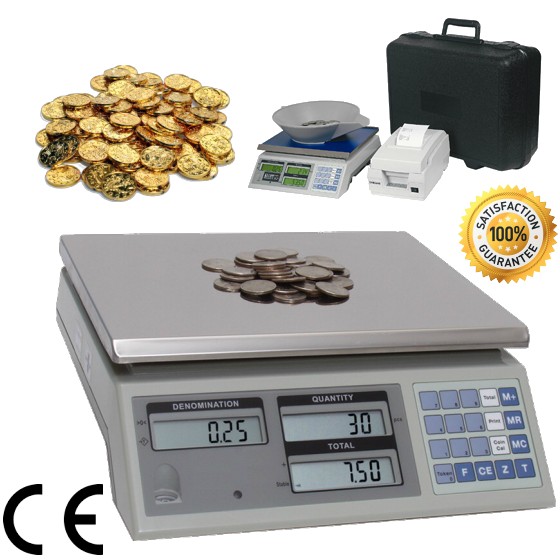

COIN COUNTING
SCALE ACC 3 series
is an easy-to-use, highly accurate scale
which features programmable unit weights and denominations. Keyboard unit
weight calculations and calibration of all functions are fast and easy. Up
to 25 multiple weighments can be accumulated for batch counting. Large 60
pound (30kg) capacity allows for counting a $1,000. bag of quarters. This
scale is AC & battery operated, (125 hours continuous use) can go anywhere
and will count coins, tokens, and chips at the touch of a button.
Three large LCD displays (Back lit) show Denomination, Quantity and Total
Dollar Amount of coins being counted, making this scale fast, easy and
accurate for all coin applications. Reduce labor, time and human error.
Count coins, currency, & change accurately & affordably! The scales
pre-programmed functions are password protected, adding security when being
used by operators in the field. Count out a full cash drawer in less than 3
minutes and within pennies. Large 60 pound capacity allows for counting a
$1,000. bag of quarters. No other coin scale is more rugged, dependable, &
affordable!
Applications: COIN
COUNTING SCALE ACC 3 series Digital Coin Counting Scales are ideal for
Vending Route Drivers, Car Washes, Casinos, Laundromats, and Amusement
Centers since they have three large, high contrast LCD windows that display
the Denomination, Quantity, and Total Amount. 9 Preset Denomination Keys:
Penny, Nickel, Dime, Quarter, Fifty-cent piece, and Dollar Coins. 4 Custom
Preset Keys allow for user-defined coin, token or ticket denominations for
quick and easy recall. This scale will save you so much time versus counting
coins by hand.
Technical Specification:
|
Counting Modes |
Tokens,
all USD, EUR, AUD, GBP Coins |
|
LCD
Display |
3
(Quantity, Total Value & Denomination), 14mm height; 6 digits |
|
Capacity x Division |
6 kg x
1 g ; 15 kg x 2 g ; 30 kg x 5 g (With overload protection) |
|
Internal Resolution |
1/20,000 ; Full Range Tare ; Auto calibration ; Upto 25 accumulations |
|
Platter
Size |
280mm x
230mm |
|
Function |
Unit
weight and denomination programmable, total value calculation |
|
Interface |
RS-232
Port, Baud rate slection: 300/600/1200/2400/4800/9600 |
|
Soft-touch Keypad |
9
preset keys for coins, ticket or tokens denominations |
|
Dimensions |
280 (D)
x 320 (W) x 105 (H) mm; Cuft 3.92' |
|
Weight |
N.W.
5.2 kg; G.W. 21.5 kg (4pcs/ctn) |
|
Power
Supply |
AC 110V
/ 230V 50/60Hz ; DC 6V 4.5AH Rechargeable Battery |
|
Power
Consumption |
Approx.
37mA (w/o backlight) and 54mA (w/ backlight) |
|
Optional Equipments |
Carrying Case, Coin Scooper, Printer |
|
Operating Temperature |
0°C ~
40°C (32°F ~ 104°F) |
|
