Kington Products

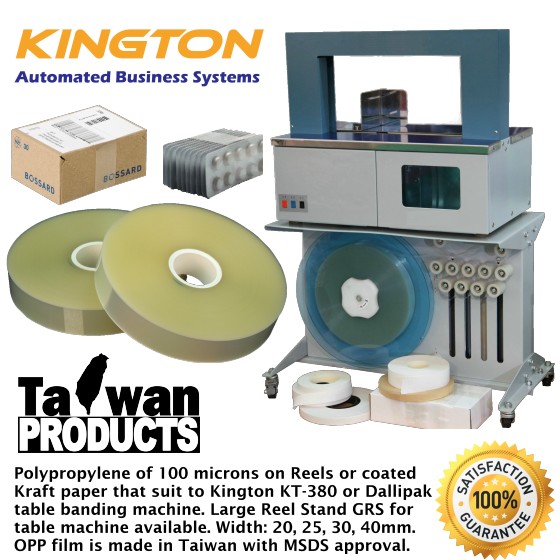

The table-top model KT-380 using a new tape feeding mechanism, OPP Film and Kraft paper roll can be used. Big Coil Stand (Optional) is easy moving of the machine by four free caster. Using long tape roll, less frequency of loading new tape rolls is secured. It can band both Kraft & OPP film tape with heat seal adhesive to ensure a tight seal without leaving a stain or residue on the bundled products.

Applications: Plastic film on Reels are adapted in above machines to strap tightens, heat seals and cuts the strap automatically for bundling small objective. For example: Pharmaceutical stuff: blister packs, distribution, Medical tubes, dressings and devices, Graphics stuff: brochures, Mailing pack security, pamphlets, forms, labels and newspapers, cards, magazines, currency and security documents, books, envelopes, coupon. Gift stuff: souvenir, gift box, cosmetic, articles of luxury, a bouquet of flowers, cigars, plastic boxes, multipacks and promotional. Food stuff: Spring onion, Chives, Leeks, candy box, authentic cuisine box, cake box, salad packs, twin packs, campaign packages of cheese, food trays for the airline industry. IT stuff: main pc board, telecom cable, electric wire, power cord,...etc.

1. Other widths and lengths are available on demand.

2. Customer request color or logo printing name available.

OPP Films on Reels suit to following Automatic Taping Machines
It. No.	Brand/Model	Origin	Width	Length	Core	Thickness
25000	Dallipak DC390	China	20mm	150/200M	50 mm	80um
25000	Dallipak DC390	China	25mm	150/200M	50 mm	80um
25000	Dallipak DC390	China	30mm	200M	50 mm	80um
25000	Dallipak DC390	China	40mm	200M	50 mm	80um
25000	DC390 GRS	China	20-50mm	1200M	50 mm	80um
25000	DC390 GRS	China	30-50mm	1200M	50 mm	80um
	Other Bundle Machines	1. Other widths and lengths are available on demand. 2. Different Thickness for cost effective is available. 3. Any requested print color or logo name is available.

You don't have to worry if your bundling machine didn't mention in above list. Just send your request to us freely, we will give you useful advice.

And we confirm all the materials of plastic film is 100% made in Taiwan. All the production process is follow ISO 9001:2008 standard process with quality assurance and meet to the requirement of Material Safety Data Sheets (MSDs).

KT-380 Technical Specification:

Sealing Technology	Heat melting sealed
Available Calibrated	20, 30, 40mm width; 150m Length
Performance	Up to 24 bandings per minute, depend on loop size
Control method	Automatic & Foot switch (PCB & LCD)
Banding Size	Max: 380 x 200 mm; Min: 30 x 10 mm
Banding Materials	Coated Kraft Paper, Transparent Plastic Film
Dimension	596 (L) x 364 (W) x 504 (H) mm (w/Dispenser 1050mm)
Weight	N.W. 32 kg ; G.W. 35 kg
Power Supply	AC 110V/60Hz or 230V/50Hz (universal model)
Tension	5 ~40 N (Adjustable)
Usage Environment	Temperature 0°C ~ 40°C (Operating), Humidity 15 ~ 90%
Optional Device	Foot Pedal, Jumbo Roll Dispenser (600M Length)
