Kington Products

The BP-850K Passbook Printers are the integrated solution that fit both teller counters and platform desks. Now your personnel can reduce transaction time by printing all documents will increase your workspace and productivity.

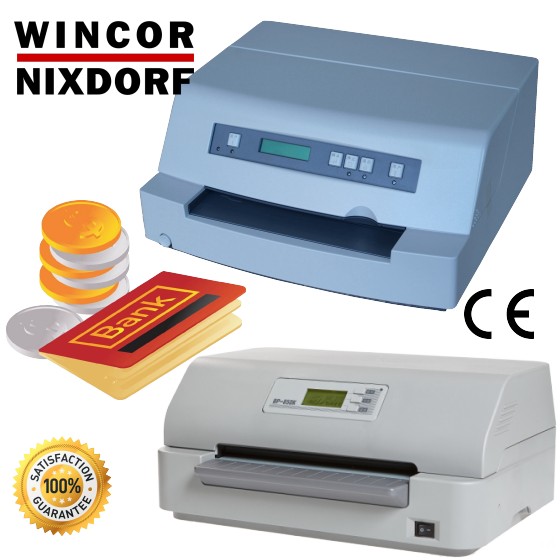

This 24 pin passbook printer BP-850K is the perfect passbook printer to fit onto teller counters crowded with hardware. It prints passbooks, validations, signature cards and cashier's checks. It comes with a long life ribbon that prints 3 million characters and an automatic alignment system that straightens inserted documents.An automatic alignment system automatically straightens skewed documents upon insertion and ensures accurate print positioning. The LCD display guides users through the entire printing process eliminating errors and training time. More than 65,000 of these passbook and document printers have been installed in 65 countries earning the BP-850K & Wincor Nixdorf 4915XE printers a reputation for unequalled reliability and product quality.

Paper Handling

Width	Cut Sheet 45~246mm, Continuous Paper 45~246mm
Length	Cut Sheet Min 64mm, Continuous Paper Min 64mm
Thickness	0.065~3 mm, Adaptive paper thickness
Sort of Paper	Passbook, passport, receipt, bill, Cut Sheet, Continuous Paper, Multi-part, Forms, Envelope, Post Card, Adhesive label
Paper Path	Friction feed: front in front out, front in rear out
Paper Path	Tractor feed: rear in front out (Optional)

Applications: The BP-850K Passbook printers accurately positions and prints on a wide range of documents including deposit slips, receipts, passbooks, cashier's checks, signature cards, loan applications, multipart forms and envelopes. No manual adjustments are required and multipart forms are crisply printed with no unwanted marking. You can elect to print from a wide variety of sizes that are optimized for print quality and speed.

Technical Specification:

Print Method	24-pin impact dot matrix
Print Direction	Bi-directional printing with logic seeking
Printable Columns	94 characters @ 10CPI
Print Speed	12CPI: Draft 400, NLQ 267CPS, LQ 133CPS
Print Language	ESC/P-k Emulation, or custom language
Character, Sets	ASCII, Italic, PC437, PC850 etc. 15 Intl. Character sets
Font	Draft, Roman, Sans Serif etc.
Bar Code Font	8 sets including EAN-13, Code 39, 128. 2-Dimension code
Copy Capability	Original + 6 Copies
Interface	Parallel interface; Optional: USB, LAN, Serial interface
Buffer	128K Bytes
Ribbon	Approx. 6 million characters
Reliability	MTBF 15000 hours; Print Head Life 300 million strokes/wire
Operating Conditions	Temperature: 5~35 °C; Humidity: 20%~80% RH
Power Supply	Rated voltage: 220VAC; Range: 165~264V AC, 49.5~60.5 Hz
Dimension	396 (W) × 298 (D) ×178 (H) mm (tractor not included)
Weight	Approx. 7.5 kg
Operation System	For windows 95/98/2000/XP, Unix, Linux etc.
Options	Network print server, Ribbon cartridge, USB, LAN interface
