MULTI-CURRENCIES COUNTER NOW READY FOR USD/EUR SERIAL # READING

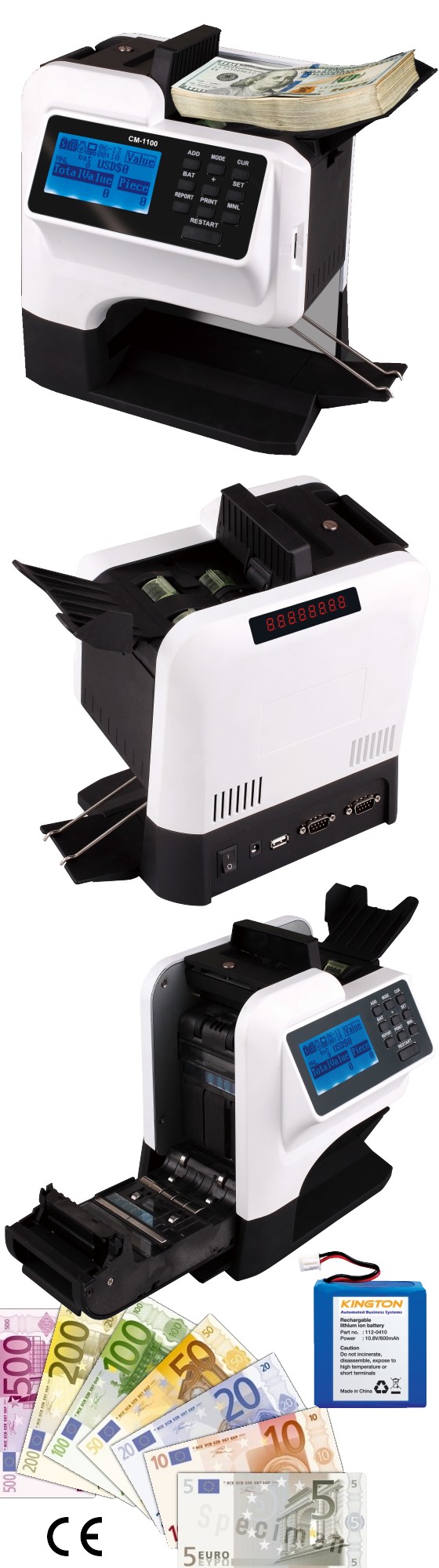

The Multi
Currency Detection Counter CM-1100 is a counterfeit detection machine especially designs
for
Recognize currency and denomination automatically, no need to be insert detected
notes one by one manually.
The Detector recognizes up to 6 different
currencies in single machine. It can detect mixed denominations, currencies and
give accurate total value.
EUR can be fed in the right side in any direction, other currencies need to
insert in the right side in one direction, such as Russian Ruble, US Dollar,
Japanese Yen, GBP, Brazil Real, Malaysia Ringgit, Indonesia Rupee, RMB etc. The passing passage can be opened and
easy to clean inside sensors. It has compact design and lower passing noise.
CE Approved. European Central Bank Certified. High Accuracy and complex
inspection: quantity and position of magnetic ink, Infra-red ink, Spectrum ink,
Secure thread, Image printing process etc. Rechargeable battery inside for
portable usage (optional), provide
more than 24 hours standby time. Support USB interface to download software.
(optional)
Applications: Multi-currencies detection
Counter are adapted for enhance the efficiency of cash
verifying and adding total sum amount. Major customer is Chains stores,
Supermarket, Money Changer, Gaming Center, Casinos Retail Cashiering, Vending
industry...etc. For stationary and mobile use. We are customers’ good partner to
give solution reduce their daily burden and enhance the efficiency of cash
handling.
Applicable currencies Including: USD,
EUR, GBP, RUB, RMB, JPY, BRL, MYR, IDR and etc. We
can add more according your request!
Technical Specification:
Feed System |
Long-edge Roller Friction System |
Applicable Banknote |
USD, EUR, GBP, RUB, RMB, JPY, BRL, MYR, IDR and etc. |
Counting Speed |
200~250 notes per minute |
Batch / Add Count |
Preset at 100 plus variable at 1-999 |
Detection Method |
UV, MG, MT, IR, CIS sensor |
Display |
LCD Display with Backlight |
Hopper Capacity |
Hopper / Stacker Capacity: Max 100~200 / notes |
Detecting Accuracy |
>99.9%, can detect Super Dollar |
Insert Direction |
In All Direction, Face or Un-faced |
Power Supply |
AC90~240V 50/60Hz; Li-ion battery(10.8V*2000mA) |
Dimension |
170 (L) x 157 (W) x 152 (H) mm |
Weight |
N.W.: 1.8Kg (Without Battery); G.W.: 2.5kg |
Optional Device |
Rechargeable Battery, USB cable, Mini Printer, S/#
Reading |
Interface |
RS-232 Interface, USB Port, SD Card port |

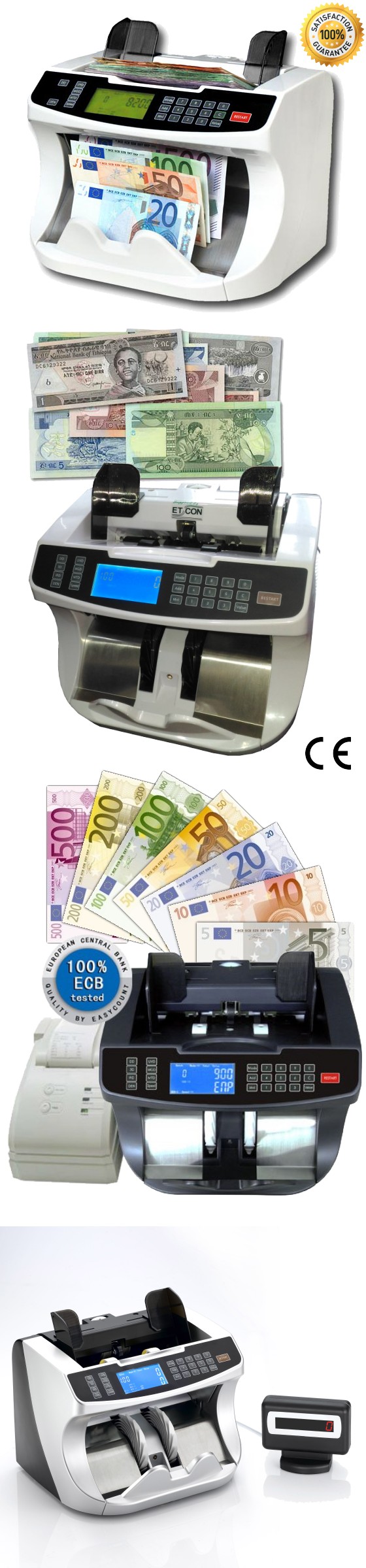

KT-950 a unique function for determining the value of counted notes. After the
notes have been counted, the total amount and subtotals for each note value are
displayed. And their authenticity is checked. It doesn't get any easier than
this.
Counterfeit Detecting: UV, MG, MT, IR, 3D, Paper Character
Features:
Sheets counting function and Value-Counting function (mix-counting).
1) ADD function
2) Batch function
3) Half note detection
4) Chain note detection
5) Double-note detection
6) Density setting
7) UV counterfeit detection (optional)
8) MG counterfeit detection (optional)
9) Metal thread detection (optional)
10) Inferred character detection (optional)
11) 3D detection (optional): Length, Highness, and Thickness
Technical Specification:
Feed System |
Roller Friction Counter |
Applicable Banknote |
USD, EUR, GBP, ETB and etc. |
Counting Speed |
Variable from 600, 1000, 1600 notes per minute |
Applicable Note Size |
Length: 90-195; Width: 50-110 ; Thickness:
0.07~0.15mm |
Detection Method |
UV, MG, MT, IR, CIS sensor
(Optional) |
Display |
Clear and informative LCD Display; Counting Display 7
Digits |
Hopper Capacity |
400 notes, Stacker capacity: 200 notes |
Note Detection |
Width, Double, Half, Chain Note Detection |
Batch / Add Count |
Preset at 100 plus variable at 1-999 |
Power Supply |
AC100~240V 50/60Hz; Power Consumption: 50W |
Dimension |
340 (L) x 335 (W) x 345 (H) mm |
Weight |
N.W.: 5.3 Kg ; G.W.: 7.0 kg |
Optional Device |
Denomination Sorting: E.g. Ethiopian Birr ETB100, 50,
10, 5 |
Interface |
RS-232 Interface, 2 USB Port |
|
